Equipment operation

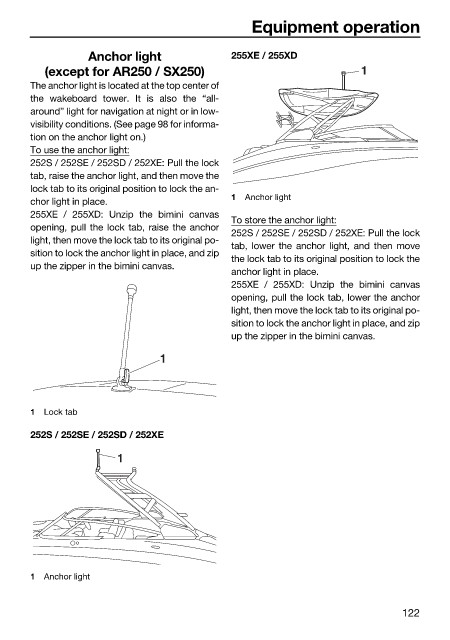

Anchor light 255XE / 255XD
(except for AR250 / SX250) 1
The anchor light is located at the top center of
the wakeboard tower. It is also the “all-
around” light for navigation at night or in low-
visibility conditions. (See page 98 for informa-
tion on the anchor light on.)
To use the anchor light:
252S / 252SE / 252SD / 252XE: Pull the lock
tab, raise the anchor light, and then move the
lock tab to its original position to lock the an-
1 Anchor light
chor light in place.
255XE / 255XD: Unzip the bimini canvas
To store the anchor light:
opening, pull the lock tab, raise the anchor
252S / 252SE / 252SD / 252XE: Pull the lock
light, then move the lock tab to its original po-
tab, lower the anchor light, and then move
sition to lock the anchor light in place, and zip
the lock tab to its original position to lock the
up the zipper in the bimini canvas.
anchor light in place.
255XE / 255XD: Unzip the bimini canvas
opening, pull the lock tab, lower the anchor
light, then move the lock tab to its original po-
sition to lock the anchor light in place, and zip
up the zipper in the bimini canvas.

1

1 Lock tab

252S / 252SE / 252SD / 252XE
1

1 Anchor light

122
