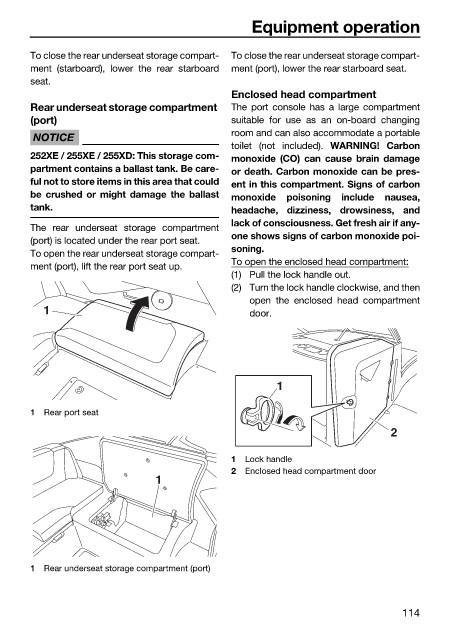

Equipment operation

To close the rear underseat storage compart- To close the rear underseat storage compart-
ment (starboard), lower the rear starboard ment (port), lower the rear starboard seat.
seat.
Enclosed head compartment
Rear underseat storage compartment The port console has a large compartment
(port) suitable for use as an on-board changing
NOTICE room and can also accommodate a portable
toilet (not included). WARNING! Carbon
252XE / 255XE / 255XD: This storage com- monoxide (CO) can cause brain damage
partment contains a ballast tank. Be care- or death. Carbon monoxide can be pres-
ful not to store items in this area that could ent in this compartment. Signs of carbon
be crushed or might damage the ballast monoxide poisoning include nausea,
tank. headache, dizziness, drowsiness, and
lack of consciousness. Get fresh air if any-
The rear underseat storage compartment
one shows signs of carbon monoxide poi-
(port) is located under the rear port seat.
soning.
To open the rear underseat storage compart-
To open the enclosed head compartment:
ment (port), lift the rear port seat up.
(1) Pull the lock handle out.
(2) Turn the lock handle clockwise, and then
open the enclosed head compartment
1 door.

1

1 Rear port seat
2

1 Lock handle
2 Enclosed head compartment door
1

1 Rear underseat storage compartment (port)

114
