Description

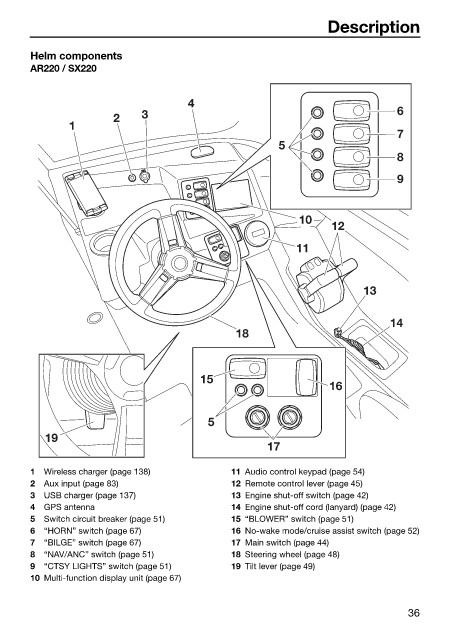

Helm components
AR220 / SX220

4
2 3 6
1
7
5
8

9

10
12

11

13

14
18

15
16

5
19
17

1 Wireless charger (page 138) 11 Audio control keypad (page 54)
2 Aux input (page 83) 12 Remote control lever (page 45)
3 USB charger (page 137) 13 Engine shut-off switch (page 42)
4 GPS antenna 14 Engine shut-off cord (lanyard) (page 42)
5 Switch circuit breaker (page 51) 15 “BLOWER” switch (page 51)
6 “HORN” switch (page 67) 16 No-wake mode/cruise assist switch (page 52)
7 “BILGE” switch (page 67) 17 Main switch (page 44)
8 “NAV/ANC” switch (page 51) 18 Steering wheel (page 48)
9 “CTSY LIGHTS” switch (page 51) 19 Tilt lever (page 49)
10 Multi-function display unit (page 67)
