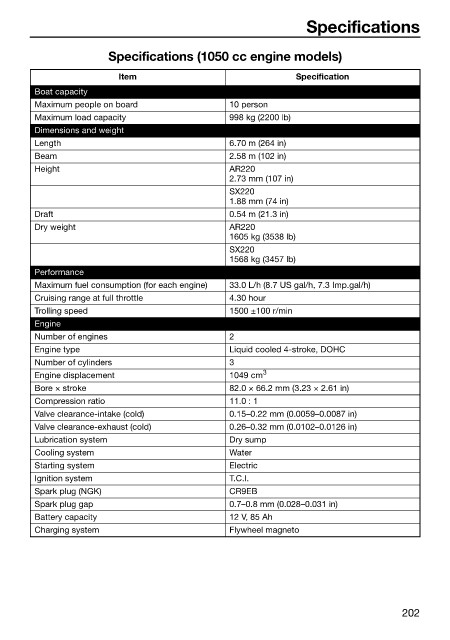

Specifications

Specifications (1050 cc engine models)

Item Specification
Boat capacity
Maximum people on board 10 person
Maximum load capacity 998 kg (2200 lb)
Dimensions and weight
Length 6.70 m (264 in)
Beam 2.58 m (102 in)
Height AR220
2.73 mm (107 in)
SX220
1.88 mm (74 in)
Draft 0.54 m (21.3 in)
Dry weight AR220
1605 kg (3538 lb)
SX220
1568 kg (3457 lb)
Performance
Maximum fuel consumption (for each engine) 33.0 L/h (8.7 US gal/h, 7.3 Imp.gal/h)
Cruising range at full throttle 4.30 hour
Trolling speed 1500 ±100 r/min
Engine
Number of engines 2
Engine type Liquid cooled 4-stroke, DOHC
Number of cylinders 3
Engine displacement 1049 cm 3
Bore × stroke 82.0 × 66.2 mm (3.23 × 2.61 in)
Compression ratio 11.0 : 1
Valve clearance-intake (cold) 0.15–0.22 mm (0.0059–0.0087 in)
Valve clearance-exhaust (cold) 0.26–0.32 mm (0.0102–0.0126 in)
Lubrication system Dry sump
Cooling system Water
Starting system Electric
Ignition system T.C.I.
Spark plug (NGK) CR9EB
Spark plug gap 0.7–0.8 mm (0.028–0.031 in)
Battery capacity 12 V, 85 Ah
Charging system Flywheel magneto

202
