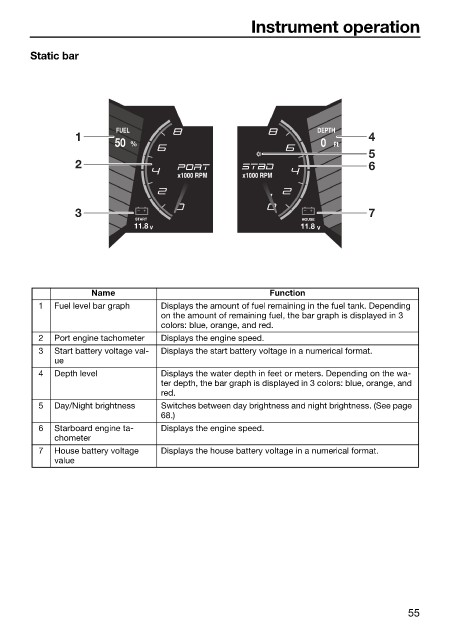

Instrument operation

Static bar

NW NE
FUEL DEPTH
1 4
50 % 0 Ft
5
2 6

3 7
START HOUSE
11.8 V 11.8 V
Bilge Blower Nav Anchor

Name Function
1 Fuel level bar graph Displays the amount of fuel remaining in the fuel tank. Depending
on the amount of remaining fuel, the bar graph is displayed in 3
colors: blue, orange, and red.
2 Port engine tachometer Displays the engine speed.
3 Start battery voltage val- Displays the start battery voltage in a numerical format.
ue
4 Depth level Displays the water depth in feet or meters. Depending on the wa-
ter depth, the bar graph is displayed in 3 colors: blue, orange, and
red.
5 Day/Night brightness Switches between day brightness and night brightness. (See page
68.)
6 Starboard engine ta- Displays the engine speed.
chometer
7 House battery voltage Displays the house battery voltage in a numerical format.
value
