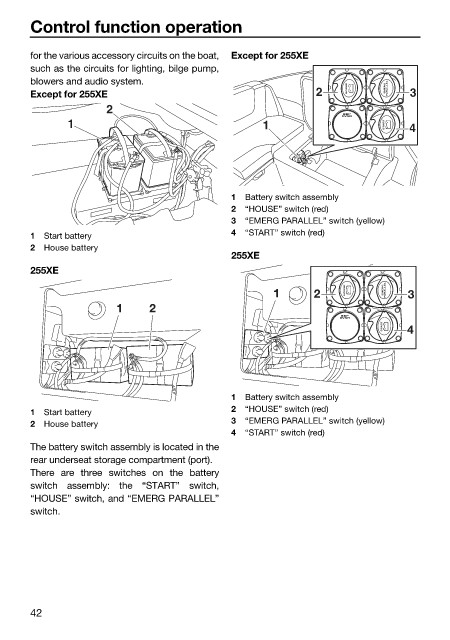

Control function operation

for the various accessory circuits on the boat, Except for 255XE
such as the circuits for lighting, bilge pump,
blowers and audio system.
Except for 255XE 2 3
2
1 1 4

1 Battery switch assembly
2 “HOUSE” switch (red)
3 “EMERG PARALLEL” switch (yellow)
1 Start battery 4 “START” switch (red)
2 House battery
255XE
255XE

1 2 3
1 2
4

1 Battery switch assembly
2 “HOUSE” switch (red)
1 Start battery
3 “EMERG PARALLEL” switch (yellow)
2 House battery
4 “START” switch (red)
The battery switch assembly is located in the
rear underseat storage compartment (port).
There are three switches on the battery
switch assembly: the “START” switch,
“HOUSE” switch, and “EMERG PARALLEL”
switch.

42
