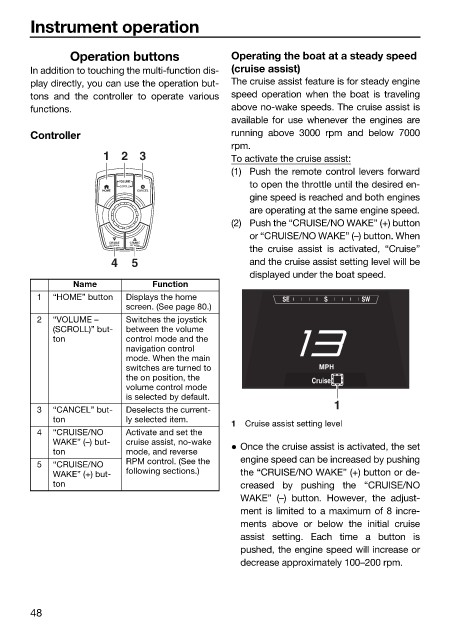

Instrument operation

Operation buttons Operating the boat at a steady speed
In addition to touching the multi-function dis- (cruise assist)
play directly, you can use the operation but- The cruise assist feature is for steady engine
tons and the controller to operate various speed operation when the boat is traveling
functions. above no-wake speeds. The cruise assist is
available for use whenever the engines are
Controller running above 3000 rpm and below 7000
rpm.
1 2 3 To activate the cruise assist:
(1) Push the remote control levers forward
VOLUME
(SCROLL) to open the throttle until the desired en-
HOME CANCEL
gine speed is reached and both engines
are operating at the same engine speed.
(2) Push the “CRUISE/NO WAKE” (+) button
or “CRUISE/NO WAKE” (–) button. When
CRUISE CRUISE
NO WAKE NO WAKE
the cruise assist is activated, “Cruise”
4 5 and the cruise assist setting level will be
displayed under the boat speed.
Name Function
1 “HOME” button Displays the home SE S SW
screen. (See page 80.)
2 “VOLUME – Switches the joystick
(SCROLL)” but- between the volume
ton control mode and the
navigation control
mode. When the main
switches are turned to MPH
the on position, the Cruise +4
volume control mode
is selected by default.
1
3 “CANCEL” but- Deselects the current-
ton ly selected item.
1 Cruise assist setting level
4 “CRUISE/NO Activate and set the
WAKE” (–) but- cruise assist, no-wake
ton mode, and reverse  Once the cruise assist is activated, the set
5 “CRUISE/NO RPM control. (See the engine speed can be increased by pushing
WAKE” (+) but- following sections.) the “CRUISE/NO WAKE” (+) button or de-
ton creased by pushing the “CRUISE/NO
WAKE” (–) button. However, the adjust-
ment is limited to a maximum of 8 incre-
ments above or below the initial cruise
assist setting. Each time a button is
pushed, the engine speed will increase or
decrease approximately 100–200 rpm.
