Description

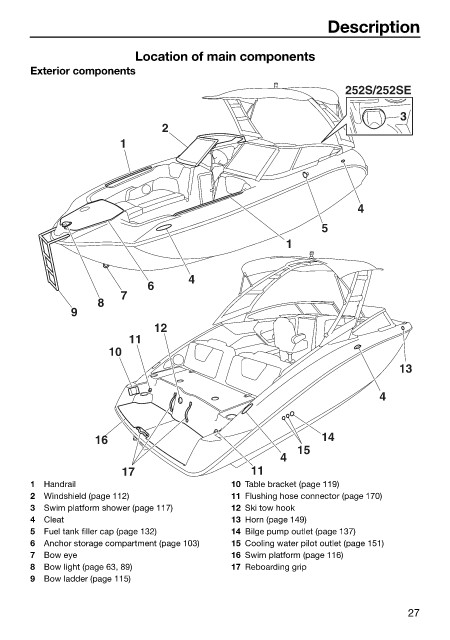

Location of main components
Exterior components
252S/252SE
3
2
1
4
5
1
4
6
7
8
9
12
11
10
13
4
16 14
15
4
17 11
1 Handrail 10 Table bracket (page 119)
2 Windshield (page 112) 11 Flushing hose connector (page 170)
3 Swim platform shower (page 117) 12 Ski tow hook
4 Cleat 13 Horn (page 149)
5 Fuel tank filler cap (page 132) 14 Bilge pump outlet (page 137)
6 Anchor storage compartment (page 103) 15 Cooling water pilot outlet (page 151)
7 Bow eye 16 Swim platform (page 116)
8 Bow light (page 63, 89) 17 Reboarding grip
9 Bow ladder (page 115)
