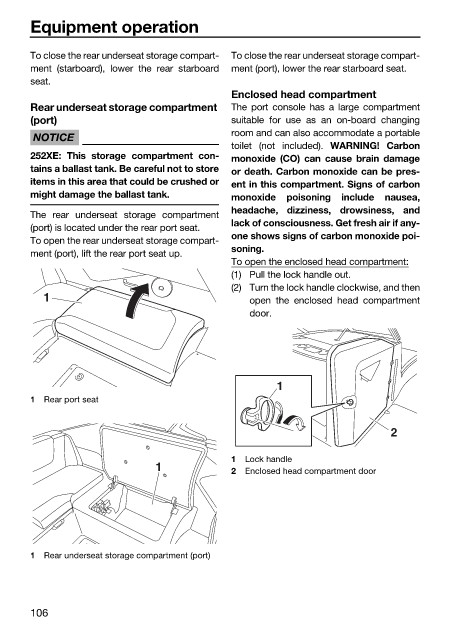

Equipment operation

To close the rear underseat storage compart- To close the rear underseat storage compart-
ment (starboard), lower the rear starboard ment (port), lower the rear starboard seat.
seat.
Enclosed head compartment
Rear underseat storage compartment The port console has a large compartment
(port) suitable for use as an on-board changing
NOTICE room and can also accommodate a portable
toilet (not included). WARNING! Carbon
252XE: This storage compartment con- monoxide (CO) can cause brain damage
tains a ballast tank. Be careful not to store or death. Carbon monoxide can be pres-
items in this area that could be crushed or ent in this compartment. Signs of carbon
might damage the ballast tank. monoxide poisoning include nausea,
headache, dizziness, drowsiness, and
The rear underseat storage compartment
lack of consciousness. Get fresh air if any-
(port) is located under the rear port seat.
one shows signs of carbon monoxide poi-
To open the rear underseat storage compart-
soning.
ment (port), lift the rear port seat up.
To open the enclosed head compartment:
(1) Pull the lock handle out.
(2) Turn the lock handle clockwise, and then
1 open the enclosed head compartment
door.

1
1 Rear port seat

2

1 Lock handle
1 2 Enclosed head compartment door

1 Rear underseat storage compartment (port)

106
