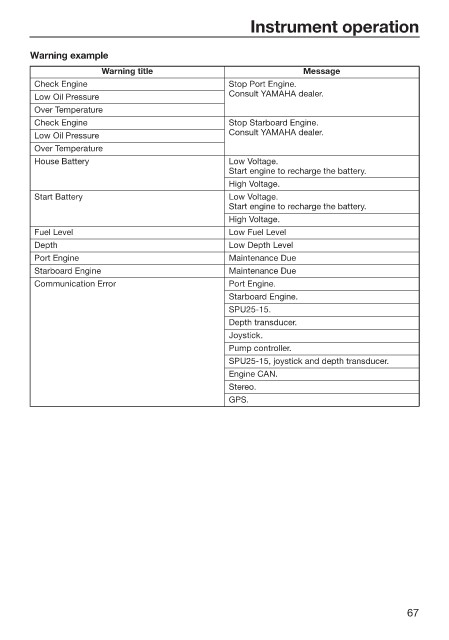

Instrument operation


       Warning example
                    Warning title                         Message
       Check Engine                         Stop Port Engine.
       Low Oil Pressure                     Consult YAMAHA dealer.
       Over Temperature
       Check Engine                         Stop Starboard Engine.
       Low Oil Pressure                     Consult YAMAHA dealer.
       Over Temperature
       House Battery                        Low Voltage.
                                            Start engine to recharge the battery.
                                            High Voltage.
       Start Battery                        Low Voltage.
                                            Start engine to recharge the battery.
                                            High Voltage.
       Fuel Level                           Low Fuel Level
       Depth                                Low Depth Level
       Port Engine                          Maintenance Due
       Starboard Engine                     Maintenance Due
       Communication Error                  Port Engine.
                                            Starboard Engine.
                                            SPU25-15.
                                            Depth transducer.
                                            Joystick.
                                            Pump controller.
                                            SPU25-15, joystick and depth transducer.
                                            Engine CAN.
                                            Stereo.
                                            GPS.























                                                                             67
